SURVEYOR No.6
Last of the Mersey survey launches.

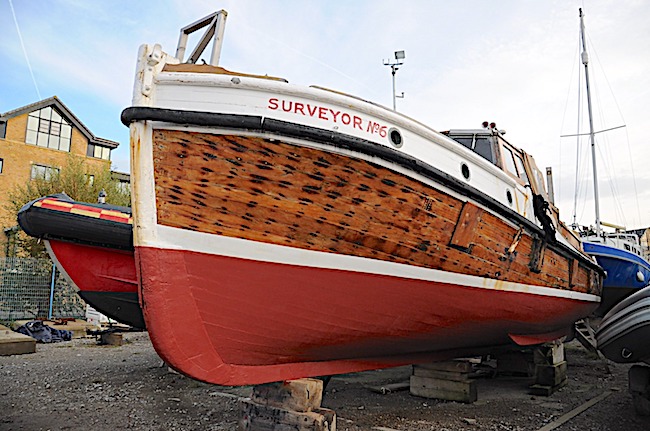

Carvel-built in copper-fastened mahogany on oak by Henry B. Hornby & Co of Wallasey in 1963.
Her original 1962 Gardner 6LX oil engine is matched to Kitchen patent clam-shell rudder gear for outstanding handling.
CLICK this picture for interior and detailed pictures
The Surveyor-class half-deckers were designed for master mariners employed by the Mersey Docks and Harbour Board. They were built by the Wallasey firm who built generations of rugged West African surf boats. SURVEYOR is fitted with Kitchen's patent reversing rudders, using reversed directional thrust in the way clam-shell thrust reversing systems operate on airliners, to allow the single engine and the drive train to run at a constant, economical speed, even in reverse or when stationary.
CLICK this picture for interior and detailed pictures
Overall Length: 41ft 0in 12.5m Air draught: 7ft 0in 2.1m [radar arch down]
Beam: 9ft 8in 2.95m Draught: 3ft 11in 1.2m
Displacement: 12000kg Designer: Henry B. Hornby & Co
Builder: Henry B. Hornby & Co of Wallasey, Lloyds Register 303874 in 1963.

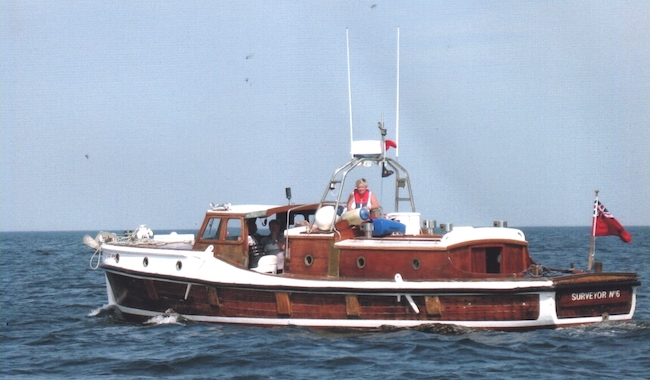

A classic, economical and highly-manoeuvrable motor yacht with a low air draught, perfect for Thames or Norfolk Broads cruising after cruising under private ownership in the Irish Sea and becoming an admired vistor to the Peel Traditional Boat Weekend in the Isle of Man.
Engines: Legendary six-cylinder Gardner 6LX, 1962, 110hp @ 1300 rpm hp [80,9Kw] driving phosphor-bronze shaft through Gardner 2UC gearbox, delivering 12 knots on 2 litres per hour fuel consumption. The Manchester engineers Hugh & John Gardner designed the LX series engine in 1958: ‘Even to this day the 6LX and the 8LX are often described as the finest heavy duty diesel engines ever produced, the first production engines to achieve 40 per cent thermal efficiency.’

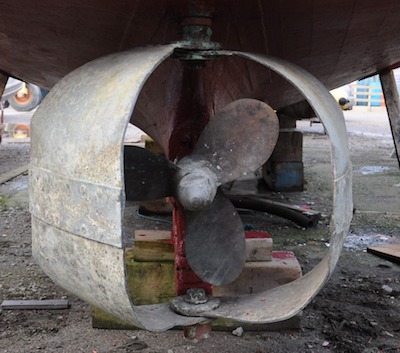

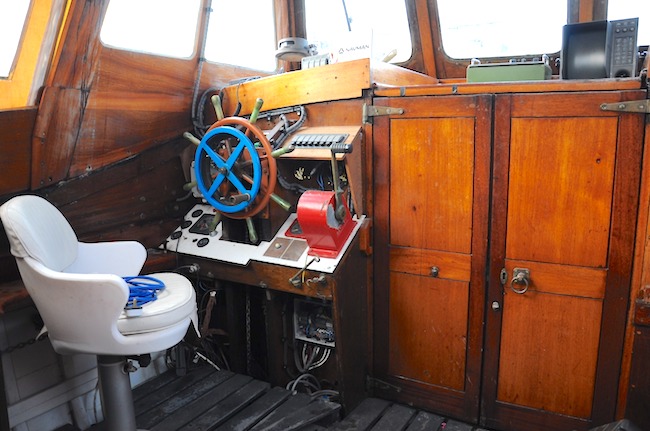

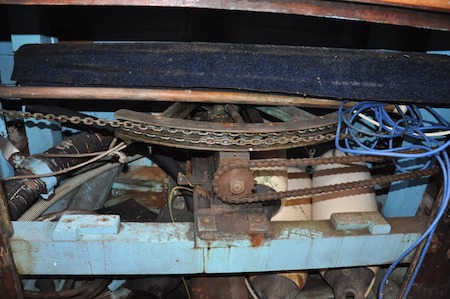

The Kitchen rudder is a phosphor-bronze combination clam-shell rudder and directional propulsion delivery system for relatively slow speed displacement boats which was invented in the early 20th century by John G. A. Kitchen of Storrs, Windermere. The rudder becomes a directional thruster and allows the engine to maintain constant revolutions and direction of drive shaft rotation while altering thrust by use of a control which directs thrust forward or aft. Only the rudder pivots; the propeller itself is on a fixed shaft. Controlled from a blue wheel on the helm the bronze gearing system allows the engine to be left running in gear at a constant speed, even when required to be stationary, and the vessel can be turned in her own length.

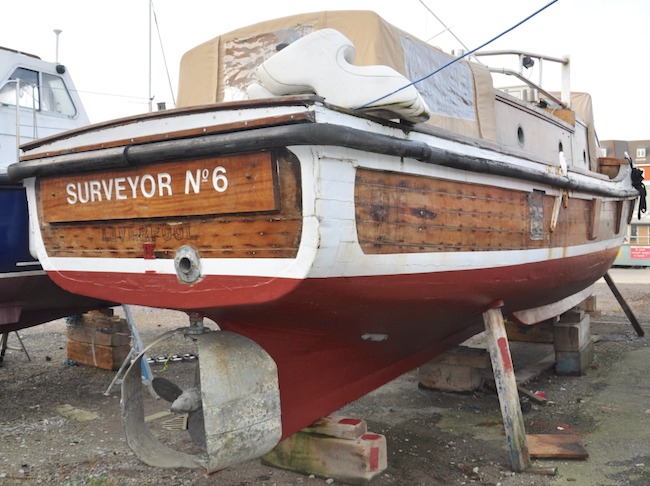

Hull: Heavy oak frames with copper-fastened mahogany planking, carvel-built and fitted with the steel lifting brackets supplied by Henry B. Hornby & Co, builders of the famous surf boats used in West Africa for transhipping cargo at sea and landing on storm beaches.
Electrical and Navigational system: Domestic and engine starting batteries, Sestrel compass, Raymarine radar, Sailor RT1445 marine vhf radio, bilge pumps, navigation lights. .
CLICK this picture for interior and detailed pictures
Deck gear: .
Safety gear: .
Accommodation: .
Galley:.
SURVEYOR is the last survivor of the professionally-built and professionally maintained launches built for work alongside deep sea vessels in channels on both sides of the exposed Liverpool Bar. She has had two private owners since she was de-commissioned by the MDH company. SURVEYOR is the last survivor of the professionally-built and professionally maintained wooden launches built for work alongside deep sea vessels in exposed channels on both sides of the Liverpool Bar. She has been cared for by two private owners since she was de-commissioned by the MDH company. Decks are watertight and her hull has recently been varnished, on the hard at Bluepoint Marine Services yard at Liverpool Marina. L3 4EE.
.

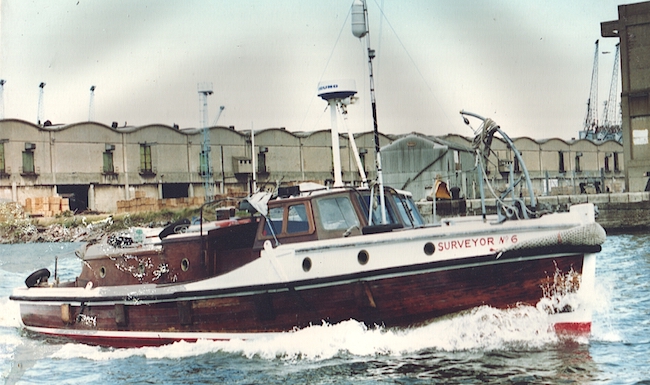

CLICK this archive picture of SURVEYOR 6 in service in Liverpool for interior and detailed pictures
GBP 5,000.00
brokerage sale
Coburg Yacht Brokers,
Douglas Boatyard, Becconsall Lane, Hesketh Bank, Preston, Lancashire. PR4 6RR
Tel: 01254 705225
TeleFax: +44 1254 776582
International: +44 1254 705225
Internet address: http//www.coburgbrokers.com
e-mail address: ros@poptel.org
1078992 England VAT Reg: GB 147 2903 64
Please note: in this case we are acting as brokers only. The vendor is not selling in the course of a business. Whilst every care has been taken in their preparation, the correctness of these particulars is not guaranteed. Particulars do not constitute a term of any contract. A prospective buyer is strongly advised to check the particulars and, where appropriate, at his own expense employ a qualified marine surveyor to undertake a survey and, if necessary, to undertake an engine test. Offered for sale subject to being unsold.
|
